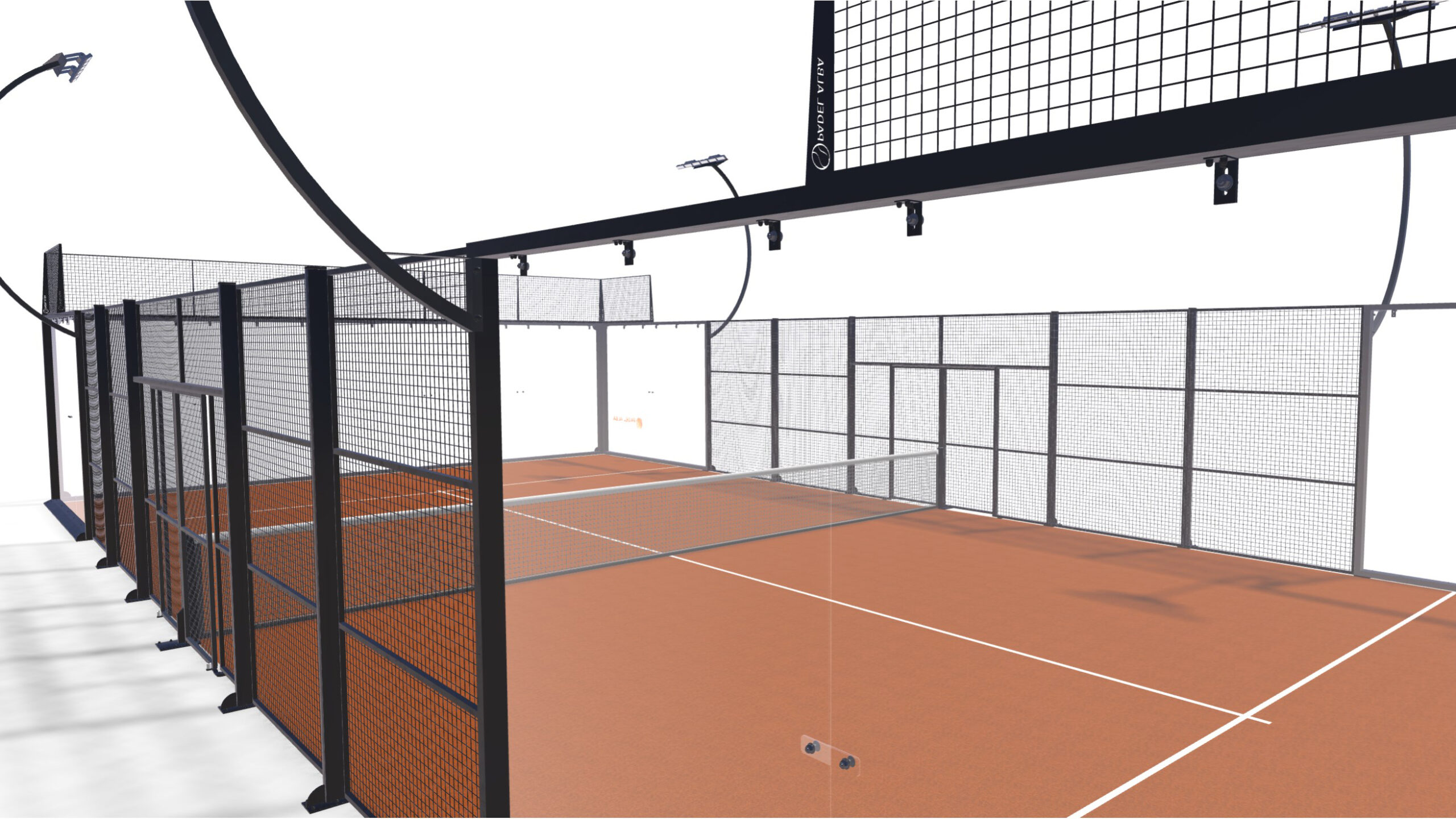

The PANORAMIC court is characterized by its harmonious design, where the robustness of its structure and the aesthetics of its panoramic window merge to offer a fabulous experience for both the player and the spectator. Like all our courts, it complies with the specifications of both the Spanish Padel Federation and the International Padel Federation.

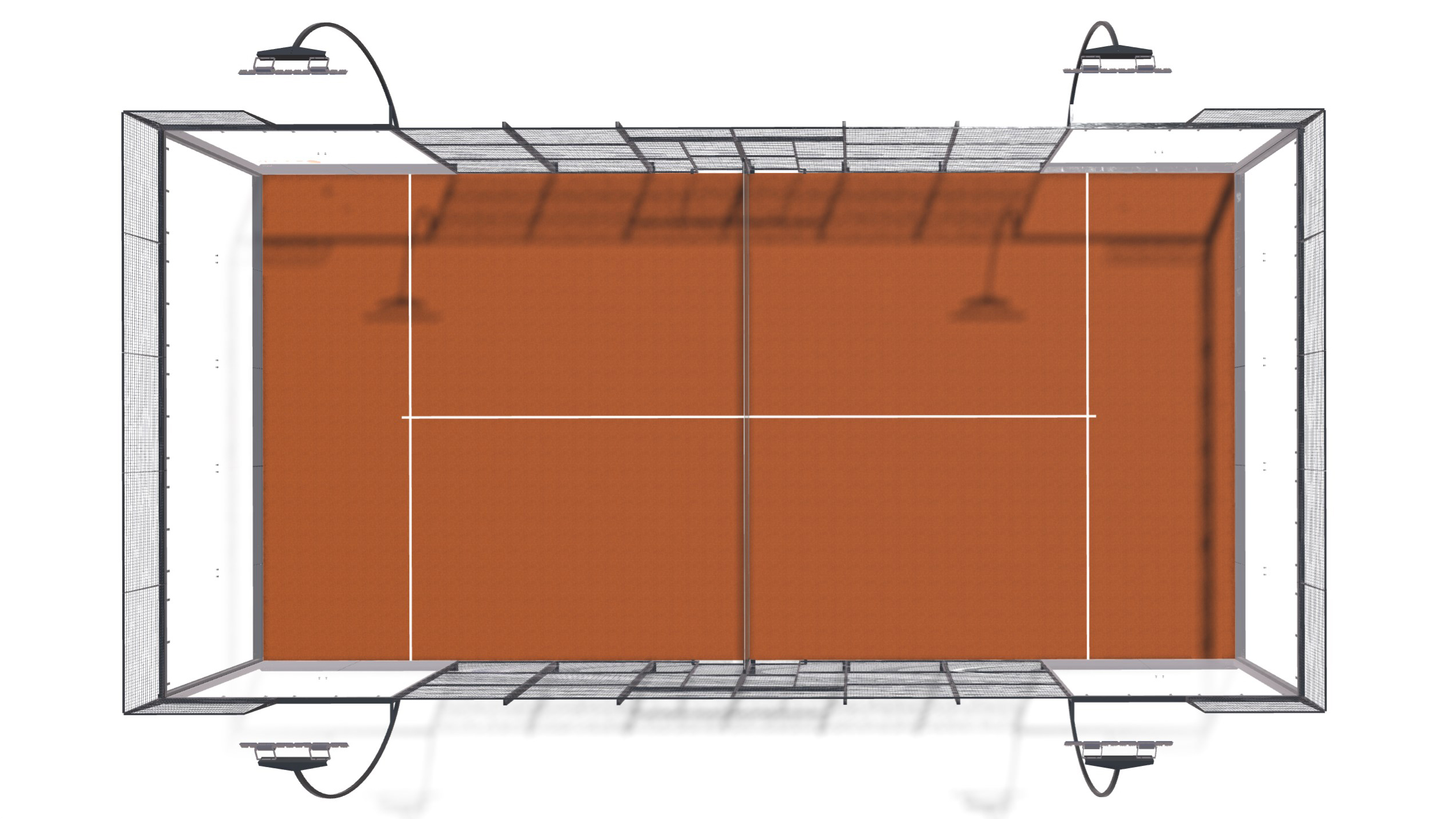

The Panoramic track has dimensions of 20×10 meters and a galvanized steel structure, oven-painted with epoxy-polyester resin, strictly following the technical specifications of the specifications.
The welded mesh measures 50x50x4mm and has no internal protrusions to ensure the safety of the players. The joints are reinforced with threaded rods, stainless steel round blind nuts and nuts to ensure greater strength and durability. Finally, it has a 100 cm double hollow entrance door for easy access.
It includes poles and netting that comply with the material approvals established by the International Paddle Federation (FIP).
The mesh modules are 2 meters wide by 3 meters high, with a 30x30x2mm profile and 50x50x4mm electrowelded mesh.
They are fixed on 100x60x2mm pillars with 250x150x10mm anchor plates.
It has the option of adding a corner finish, with galvanized structural tube beams of 100x60x2mm, M16 screws or higher and metal dowels of 120mm minimum length.
The floor fixing is made by means of standard anchors to ensure a solid and durable installation. It also has horizontal crosspieces at 1m and 2m of 30x30x2mm for anti-panels and the pillars are sealed at the top with PVC plugs.
With all these elements, the track offers a resistant and safe structure, complying with FIP quality standards.
We use tempered glass with a thickness of 12mm for the back and sides of the court. All glass is 2 meters wide and 3 meters high. To guarantee their durability and resistance, they are installed on a 5mm neoprene layer that reduces vibrations and minimizes the risk of breakage.
The manufacturing process of our tempered glass rigorously complies with the UNE EN 12150-1 standard, thus ensuring maximum quality and safety. With these certified quality glasses, maximum performance is guaranteed, offering a safe gaming experience.
Padel Alba offers in all its models the best LED padel lighting in the market, thanks to our partner, Led Projects, Spanish manufacturer and official supplier of the World Padel Tour circuit since 2015.
Our paddle tennis court lighting meets the highest quality standards both in terms of luxes and uniformity in all playing areas (net, accesses, backdrops, sides).
In addition, the floodlights are designed to illuminate high enough to allow players to see the ball after a balloon, avoiding glare and shadows.
Another advantage is that they allow 4K/8K slow motion recording without flicker effect.
Depending on the use of the paddle courts, our ranges of luminaires cover all types of courts indicated in the European standard for sports lighting, UNE-EN-12193:2020, from court lighting for amateur use (class III), as well as for international competitions or television broadcasts (class I).
The metal structure is coated with electrostatic powder paint. It is applied on the surface of the material and then undergoes a polymerization process in an oven at high temperatures (between 180ºC and 200ºC).
This painting process provides high protection against corrosion and UV rays, as well as against mechanical impact.
Additional protection in coastal/maritime areas. In locations with high salt spray exposure, we apply additional corrosion protection measures.
Color customization: the structure can be painted in a RAL of the customer’s choice, and the rail can even be painted in two tones for further customization.
