With a wide variety of models, materials and colors for acoustic screens, improving the environment in padel tennis clubs.
Take full advantage of state-of-the-art technology and premium materials to create custom acoustic screens that transform padel tennis clubs affected by noise pollution.
Underscoring the importance to these clubs, these solutions promise an improved environment, enhancing the experience for both players and neighbors.

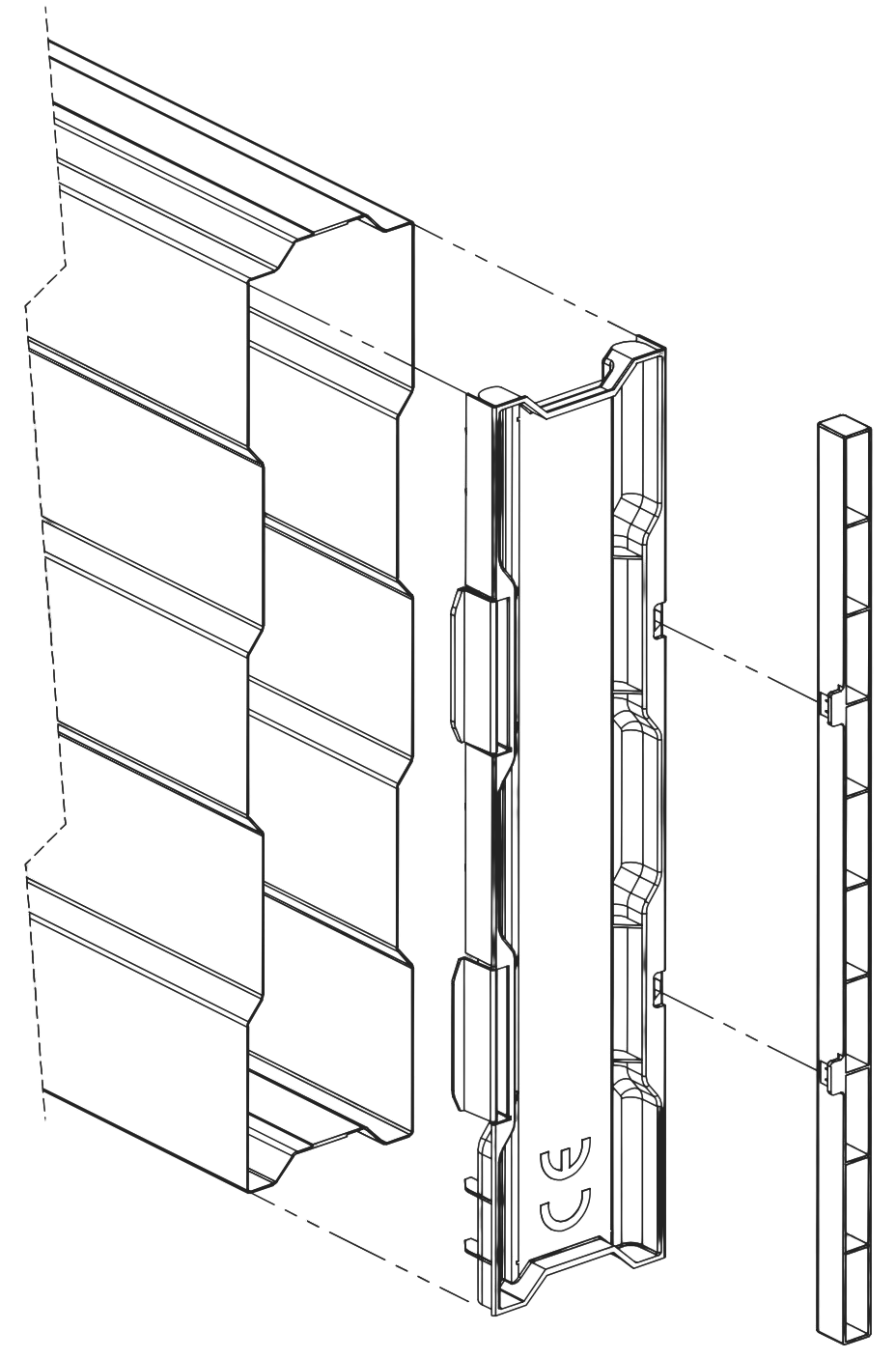

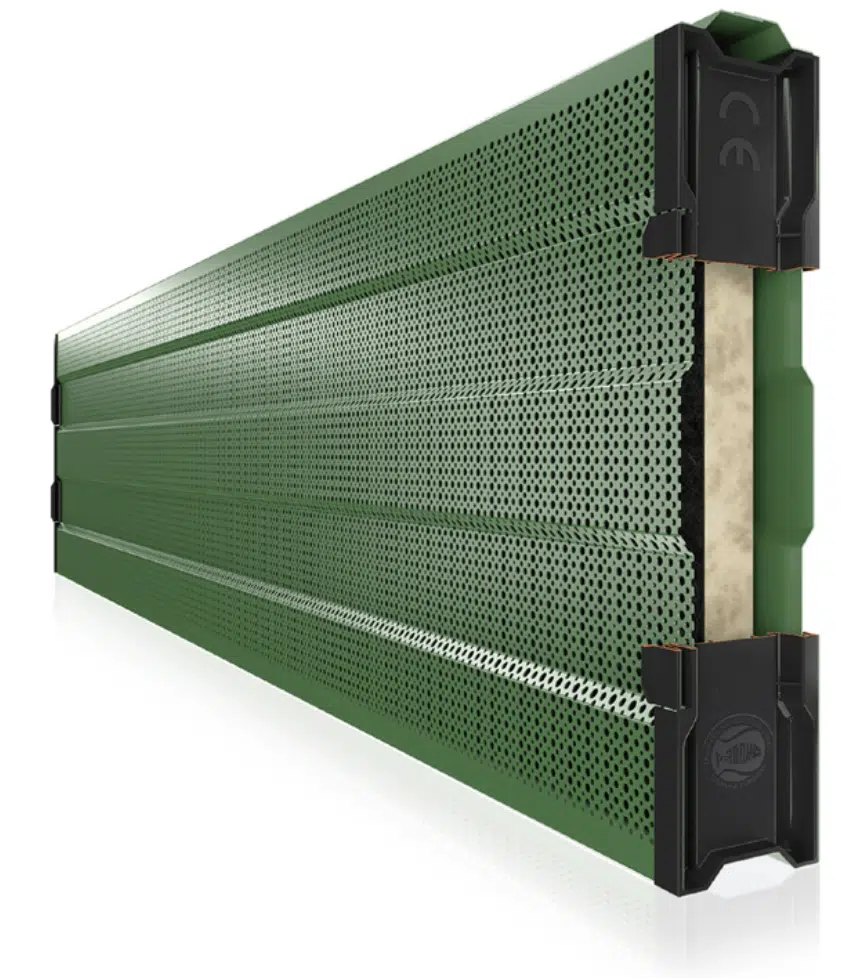

The PG5 sound absorbing panel, designed for the construction of noise barriers, consists of two profiled galvanized steel sheets, one with perforations (absorbing side) and the other smooth (reflecting side).
When joined together they form a casing that is closed at the ends with a polypropylene cover, which guarantees both impermeability and non-transmission of noise sound waves. Inside, and between the two steel sheets, rock wool with a black protective veil is placed.
Perforated continuous galvanized steel sheet, 0.8 mm thick, DX51D quality according to UNE-EN 10346 standard. Oriented towards the noise emitting area.
Non-perforated continuous galvanized steel sheet, 0.8 mm thick, DX51D quality according to UNE-EN 10346 standard. Oriented towards the noise receiving area.
Semi-rigid rock wool panel, with black protective veil. Non hydrophilic to water. Non-combustible to fire.
2 polypropylene lids.
Galvanized steel DX51D + Z140.
The panel finish is a polyester powder paint protection in the standard colors of the RAL chart
Average thickness of coating on metal e ≥ 60 μm.
Galvanized steel
Type: Simple absorbent
Sound absorption index: DLα = 15 dB
Sound Insulation Rating: DLr = 26 dB

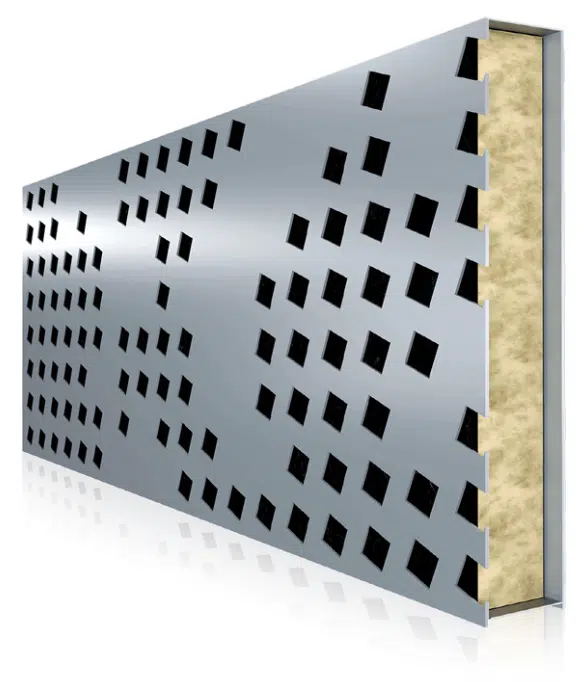

Galvanized steel
Type: Simple absorbent
Sound absorption index: DLα = 13 dB
Sound Insulation Rating: DLr = 26 dB
Dimensions (mm):
Height variable. Width 2000. Length 110 mm.

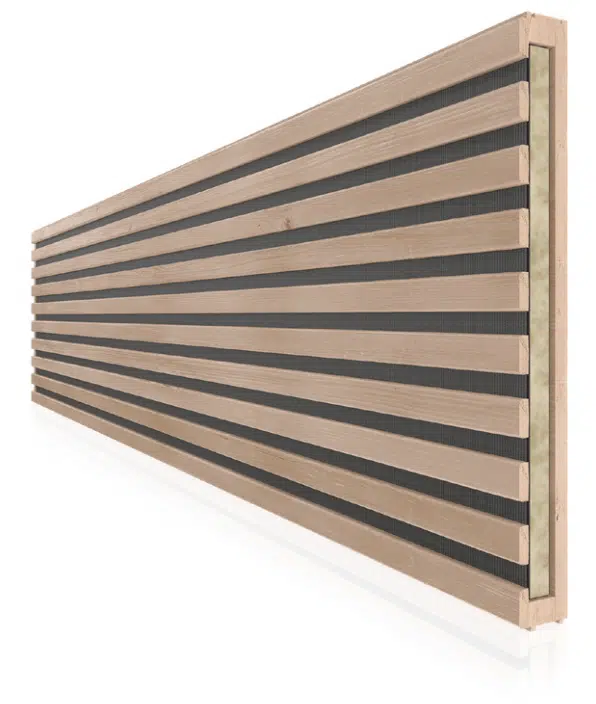

Wood
Type: Simple absorbent
Sound absorption index: DLα = 20 dB
Sound Insulation Rating: DLr = 26 dB
Dimensions (mm):
Height 1000. Width 4000. Length 40

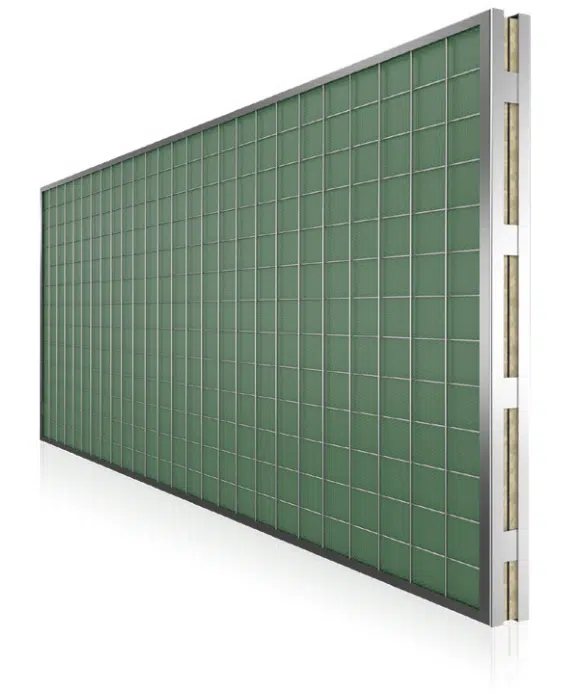

Galvanized steel/aluminum
Type: Absorbent
Sound absorption index: DLα = 16 dB
Dimensions (mm):
Variable height. Variable width. Length: 76

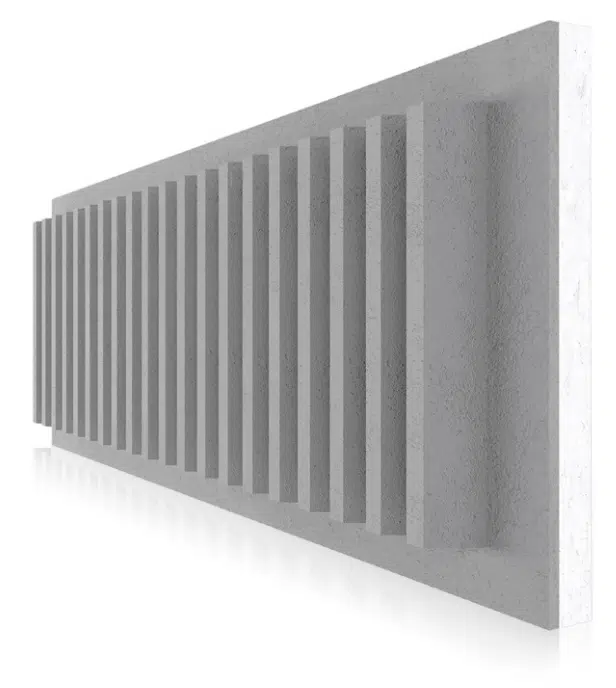

Concrete
Type: Simple absorbent
Sound absorption index: To be defined
Sound insulation index: To be defined
Dimensions (mm):
Height -. Width -. Length 200

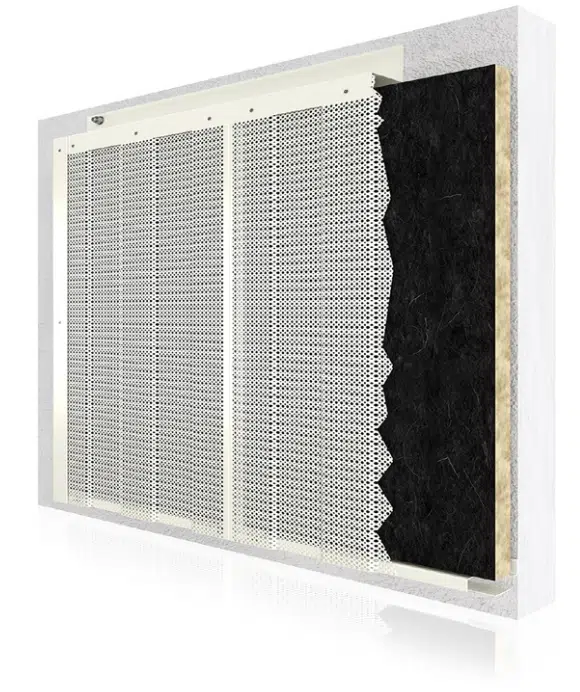

Aluminum
Type: Simple absorbent
Sound absorption index: To be defined
Sound insulation index: To be defined
Dimensions (mm):
Height, width, length: variable
